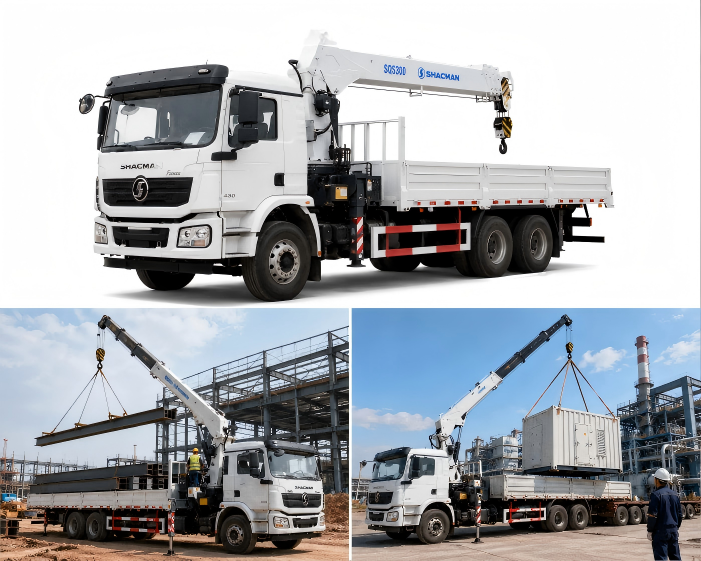

SHACMAN F3000 6X4 Crane Truck-Products Center-SHACMAN AFRICA

Parameter

Specification

Vehicle Model

SHACMAN F3000 6×4 Crane Truck

Vehicle Type

Truck Mounted Crane

Drive Type

6×4

Cabin

F3000 Flat Roof / High Roof Cabin

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Air Suspension Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP10 / WP12 / WP13 Series

Horsepower

340 HP / 380 HP / 430 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

9.7 L – 12.5 L

Maximum Torque

1500–2100 N·m

Fuel Type

Diesel

Fuel Tank Capacity

300 L / 400 L

Transmission Brand

FAST

Transmission Model

10JSD / 12JSD Series

Gearbox

10 Forward & 2 Reverse / 12 Forward & 2 Reverse

Clutch

430 mm Diaphragm Clutch

PTO System

Equipped

Front Axle

7.5T MAN Axle

Rear Axle

16T MAN Double Reduction Axle ×2

Axle Ratio

5.262 / 5.92 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

10 + 1 Spare Tire

Wheelbase

4600 + 1350 mm

Overall Dimension

10500 × 2550 × 3950 mm

Crane Brand

XCMG / SANY / PALFINGER Optional

Crane Type

Straight Boom Crane / Knuckle Boom Crane

Crane Mounting Position

Behind Cabin

Rated Lifting Capacity

8–16 Tons

Maximum Lifting Moment

200–400 kN·m

Maximum Working Radius

15–22 m

Maximum Lifting Height

17–25 m

Boom Sections

4–6 Sections

Boom Material

High-strength Structural Steel

Rotation Angle

360° Continuous Rotation

Winch Type

Hydraulic Winch

Winch Capacity

8–16 Tons

Hydraulic System

Full Hydraulic Control

Hydraulic Pump Brand

Imported Hydraulic Pump

Hydraulic Oil Tank Capacity

180–250 L

Outrigger Type

H-type Hydraulic Outriggers

Outrigger Span

5500–6500 mm

Cargo Body Length

6200–8500 mm

Cargo Body Width

2450 mm

Cargo Body Height

600–800 mm

Cargo Body Material

High-strength Steel

Payload Capacity

15–25 Tons

GVW

25000 kg

Maximum Speed

90 km/h

Application

Construction Site, Port, Logistics, Mining, Industrial Project

Remote Control

Optional Wireless Remote Control

Safety Device

Overload Protection System

Optional Configuration

Customized Configuration Supported

SHACMAN F3000 6X4 Crane Truck
