SHACMAN H3000 8X4 Oil Tanker Truck-Products Center-SHACMAN AFRICA

Parameter

Specification

Vehicle Model

SHACMAN H3000 8×4 Oil Tanker Truck

Vehicle Type

Oil Tanker Truck / Fuel Transport Truck

Drive Type

8×4

Cabin Model

H3000 High Roof Cabin

Driving Type

LHD / RHD

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Air Suspension Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP10 / WP12 / WP13 Series

Horsepower

340 HP / 380 HP / 400 HP / 430 HP

Emission Standard

Euro II / Euro III / Euro V / Euro VI

Displacement

9.726 L / 11.596 L / 12.54 L

Maximum Torque

1600–2300 N·m

Fuel Type

Diesel

Transmission Brand

FAST

Transmission Model

10JSD180 / 12JSD200T

Gearbox

10 Forward & 2 Reverse / 12 Forward & 2 Reverse

Clutch

430 mm Diaphragm Clutch

Front Axle

9.5T MAN Axle ×2

Rear Axle

16T MAN Double Reduction Axle ×2

Axle Ratio

4.769 / 5.262 / 5.92

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Standard

Suspension

Heavy-duty Multi-leaf Spring

Frame

High-strength Reinforced Chassis

Fuel Tank Capacity

300–400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

12 + 1 Spare Tire

Wheelbase

1800 + 4575 + 1400 mm

Overall Dimension

11800 × 2550 × 3650 mm

Tank Material

Carbon Steel / Aluminum Alloy

Tank Shape

Elliptical Tank

Tank Capacity

25000–35000 Liters

Compartments

1–6 Compartments Optional

Tank Thickness

5–6 mm

Manhole Cover

European Standard

Bottom Valve

API Pneumatic Bottom Valve

Oil Pump

Self-priming Pump / Gear Pump

Flow Meter

Optional

Loading System

Top Loading / Bottom Loading

Discharge Method

Pump Discharge / Gravity Discharge

GVW

50000 kg

Curb Weight

14500 kg

Payload Capacity

25–35 Tons

Maximum Speed

90 km/h

Application

Diesel, Gasoline, Kerosene, Fuel Oil Transportation

Optional Configuration

Customized Configuration Supported

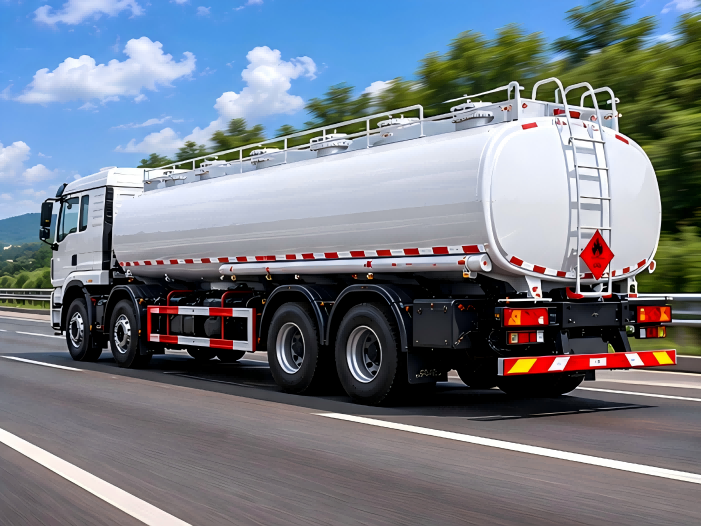

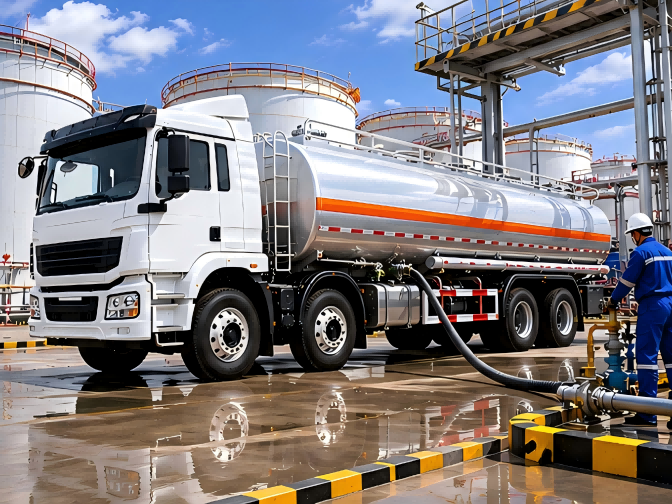

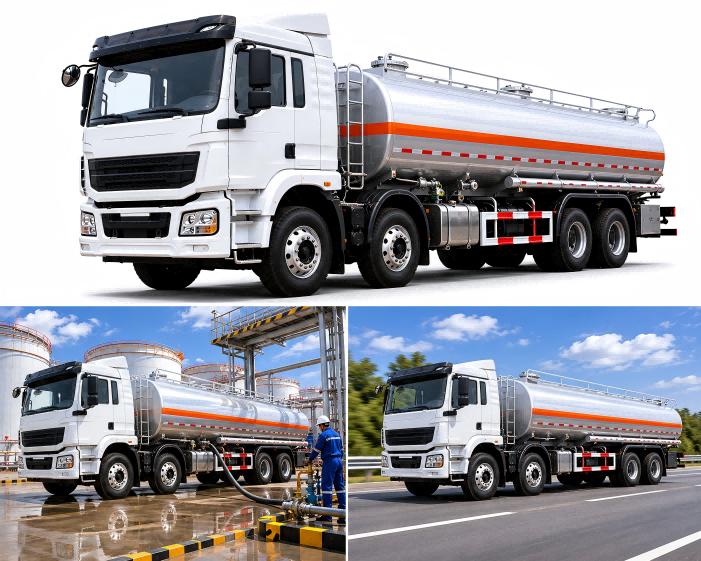

SHACMAN H3000 8X4 Oil Tanker Truck
